Genie Boom Lift Z™-30/20 N
Genie Boom Lifts Electric and Bi-Energy machines offer quiet, emission-free operation in the most responsive work environments.
Over View of Genie Boom Lifts Z™-30/20 N
- Genie Lifts Works in tight spaces with zero tail swing and front arm swing in stowed and raised positions
- 47 in (1.19 m) wide chassis for narrow aisle access

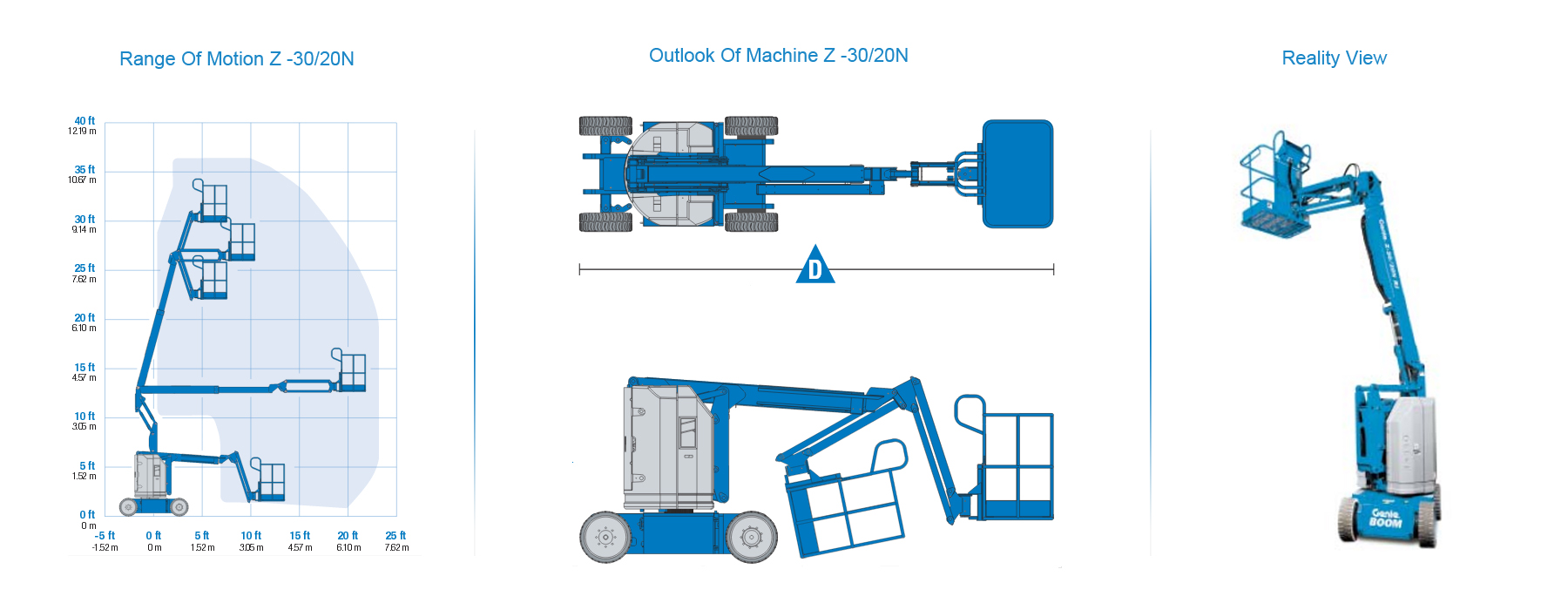

- 4 ft (1.22 m) Genie boom has 139° range of motion allowing positioning above or below horizontal
- Genie Boom Lift Z-30/20 N RJ optional rotating jib offers 200° of horizontal rotation.
- Standard self-levelling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Drive performance of 35% grade ability and 3.3 mph travel speed
- Genie motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability.
- Genie lifts are automatic hill and ramp braking
Specifications of Genie Boom Lifts Z™-30/20 N
Working Height* | 36 ft (11.14 m) |
---|---|
Width | 3 ft 11 in (1.19 m) |
Horizontal Reach | 21 ft 5 in (6.53 m) |
Up & Over Clearance | 12 ft 8 in (3.86 m) |
Lift Capacity | 500 lbs (227 kg) |
Downloads of Genie Boom Lifts Z™-30/20 N
Other Products of Genie Boom Lifts
Product | Working Height* | Horizontal Reach | Up & Over Clearance | |
---|---|---|---|---|
Z™-30/20 N | 36 ft (11.14 m) | 21 ft 5 in (6.53 m) | 12 ft 8 in (3.86 m) | 12 ft 8 in (3.86 m) |
Z™-34/22 | 40 ft 6 in (12.52 m) | 22 ft 3 in (6.78 m) | 15 ft (4.57 m) | 15 ft (4.57 m) |
Z™-34/22 N | 40 ft 6 in (12.52 m) | 22 ft 3 in (6.78 m) | 15 ft 2 in (4.62 m) | 15 ft 2 in (4.62 m) |
Z™-40/23 N & Z™-40/23 N RJ | 46 ft 5 in (14.32 m) | 22 ft 8 in (6.91 m) | 21 ft 3 in (6.48 m) | 21 ft 3 in (6.48 m) |
Z™-45/25 & Z™-45/25J | 51 ft 6 in (15.87 m) | 25 ft (7.62 m) | 23 ft 1 in (7.04 m) | 23 ft 1 in (7.04 m) |
