Genie Articulating Boom Lift Z-34/22 DC or Bi-Energy
Genie Lifts Electric and Bi-Energy machines offer quiet, emission-free operation in the most responsive work environments.
Overview of Genie Articulating Boom Lifts Z-34/22 DC or Bi-Energy
- Genie Boom Lifts 48V DC machine with diesel powered generator performing as 100 amp battery charger make it ideal for indoor and outdoor platform.
- Genie Lifts has maximum drive performance of 30% grade ability and 4.0 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors reducing complexity and improving reliability of the drive system
- The direct electric, 48V drive system provides outstanding battery life
- 4 ft (1.2 m) jib features 139° working range
- Genie lifts have self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
- Easy Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
- Compact 68 in (1.73 m) width
- Genie Lifts Automatic hill braking and ramp braking

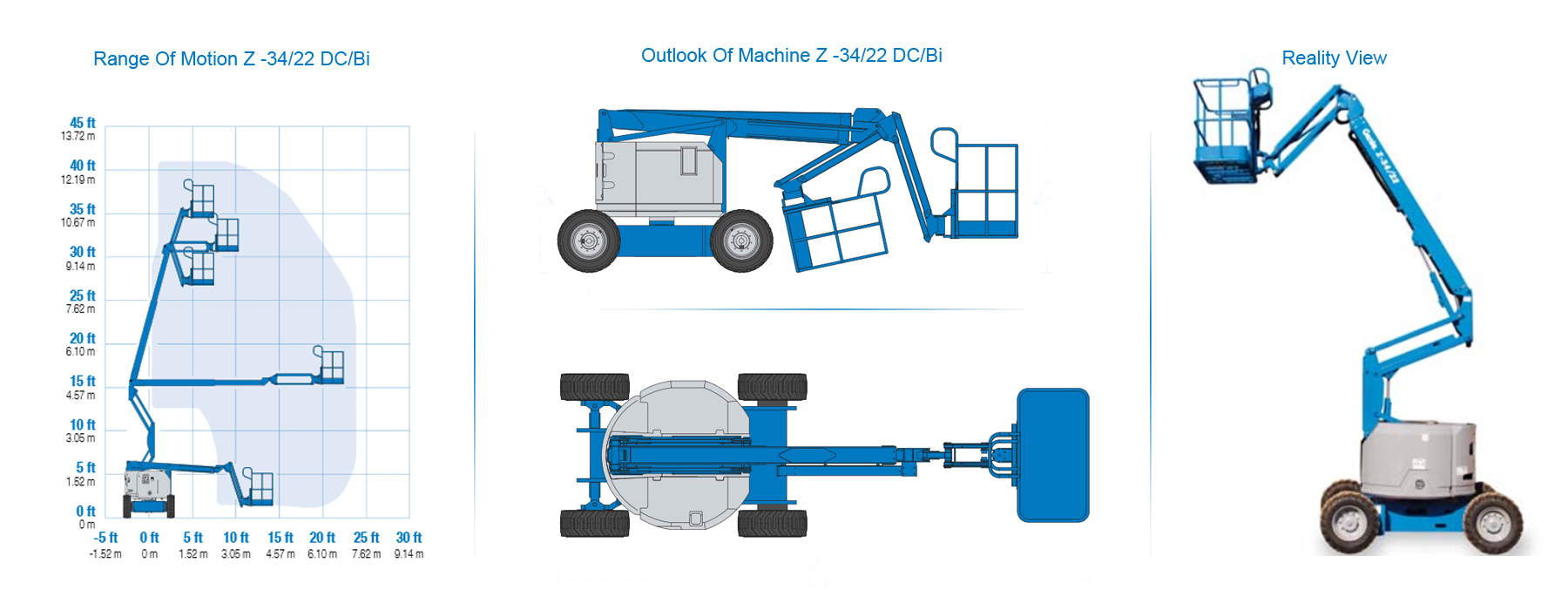

Specifications of Genie Articulating Boom Lifts Z-34/22 DC or Bi-Energy
Working Height* | 40 ft 6 in (12.52 m) |
---|---|
Width | 5 ft 8 in (1.73 m) |
Horizontal Reach | 22 ft 3 in (6.78 m) |
Up & Over Clearance | 15 ft (4.57 m) |
Lift Capacity | 500 lbs (227 kg) |
Downloads of Genie Articulating Boom Lifts Z-34/22 DC or Bi-Energy
Other Products of Genie Boom Lifts
Product | Working Height* | Horizontal Reach | Up & Over Clearance | |
---|---|---|---|---|
Z™-30/20 N | 36 ft (11.14 m) | 21 ft 5 in (6.53 m) | 12 ft 8 in (3.86 m) | 12 ft 8 in (3.86 m) |
Z™-34/22 | 40 ft 6 in (12.52 m) | 22 ft 3 in (6.78 m) | 15 ft (4.57 m) | 15 ft (4.57 m) |
Z™-34/22 N | 40 ft 6 in (12.52 m) | 22 ft 3 in (6.78 m) | 15 ft 2 in (4.62 m) | 15 ft 2 in (4.62 m) |
Z™-40/23 N & Z™-40/23 N RJ | 46 ft 5 in (14.32 m) | 22 ft 8 in (6.91 m) | 21 ft 3 in (6.48 m) | 21 ft 3 in (6.48 m) |
Z™-45/25 & Z™-45/25J | 51 ft 6 in (15.87 m) | 25 ft (7.62 m) | 23 ft 1 in (7.04 m) | 23 ft 1 in (7.04 m) |
Sendhamarai Engineering Offer Genie boom lifts for Sales - Services - Hire in South - India Region
