Genie Articulating Boom Lift Z™-34/22
Genie Boom Lift are perfect for outdoor construction and industrial applications Genie engine-powered articulating Z™ boom lift provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
Overview of Genie Boom Lifts Z™ -34/22
- Genie Boom lift is smooth control, durability and efficient power transmission ideal for rough terrain operation.
- Two-speed hydraulic motors for optimum speed and torque.
- Genie Booms are zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas.
- Genie lifts are ascent and descent along a vertical plane with or without boom retraction or extension.
- 2WD model: 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 37% gradeability.
- 4WD model: 0.68 - 3.0 mph (1.1 - 4.8 km/h) with 45% gradeability.
- Ideal for outdoor construction and industrial applications.
- High ground clearance, two- or four-wheel drive and rough terrain features available.
- Genie lifts have quiet diesel engine options deliver excellent power, torque, gradeability and trainability.
- Full-time positive drive traction system and active oscillating axle (most models) for traction on rough terrain.
- Genie lifts self-leveling platform rotates 90° to either side on non-jib models.

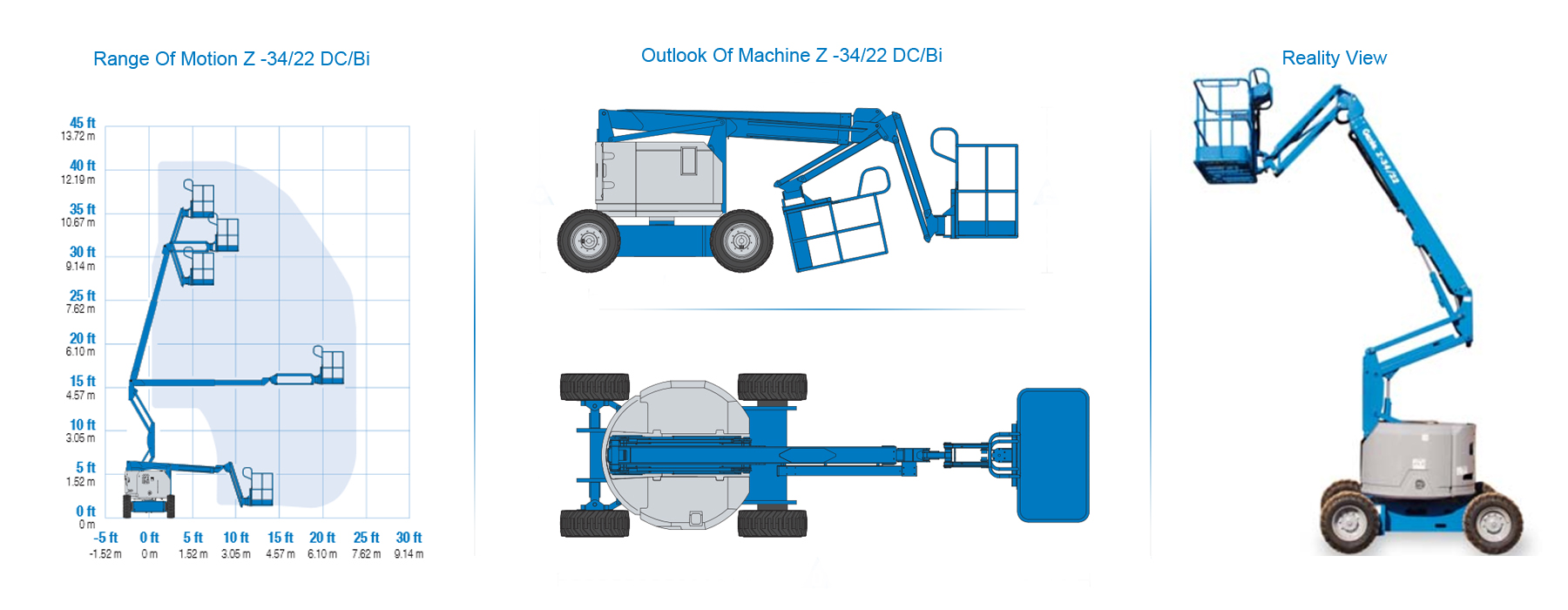

Specifications of Genie Boom Lifts Z™ -34/22
| Working Height* | 40 ft 6 in (12.52 m) |
|---|---|
| Width | 5 ft 8 in (1.73 m) |
| Horizontal Reach | 22 ft 3 in (6.78 m) |
| Up & Over Clearance | 14 ft 11 in (4.55 m) |
| Lift Capacity | 500 lbs (227 kg) |
Downloads of Genie Boom Lifts Z™ -34/22
Other Products of Genie Boom Lifts
| Product | Working Height* | Horizontal Reach | Up & Over Clearance | |
|---|---|---|---|---|
| Z™-34/22 IC | 40 ft 6 in (12.52 m)** | 22 ft 3 in (6.78 m) | 14 ft 11 in (4.55 m)** | 14 ft 11 in (4.55 m)** |
| Z™-45/25 RT | 51 ft 11 in (16.00 m) | 25 ft (7.62 m) | 23 ft 6 in (7.16 m) | 23 ft 6 in (7.16 m) |
| Z™-60/34 | 66 ft 4 in (20.39 m) | 36 ft 3 in (11.05 m) | 27 ft (8.23 m) | 27 ft (8.23 m) |
| Z™-80/60 | 84 ft (25.77 m) | 60 ft (18.29 m) | 29 ft (8.83 m) | 29 ft (8.83 m) |
| ZX™-135/70 | 141 ft (43.15 m) | 69 ft 9 in (21.26 m) | 75 ft 6 in (23.01 m) | 75 ft 6 in (23.01 m) |
Sendhamarai Engineering Offer Genie boom lifts for Sales - Services - Hire in South - India Region
