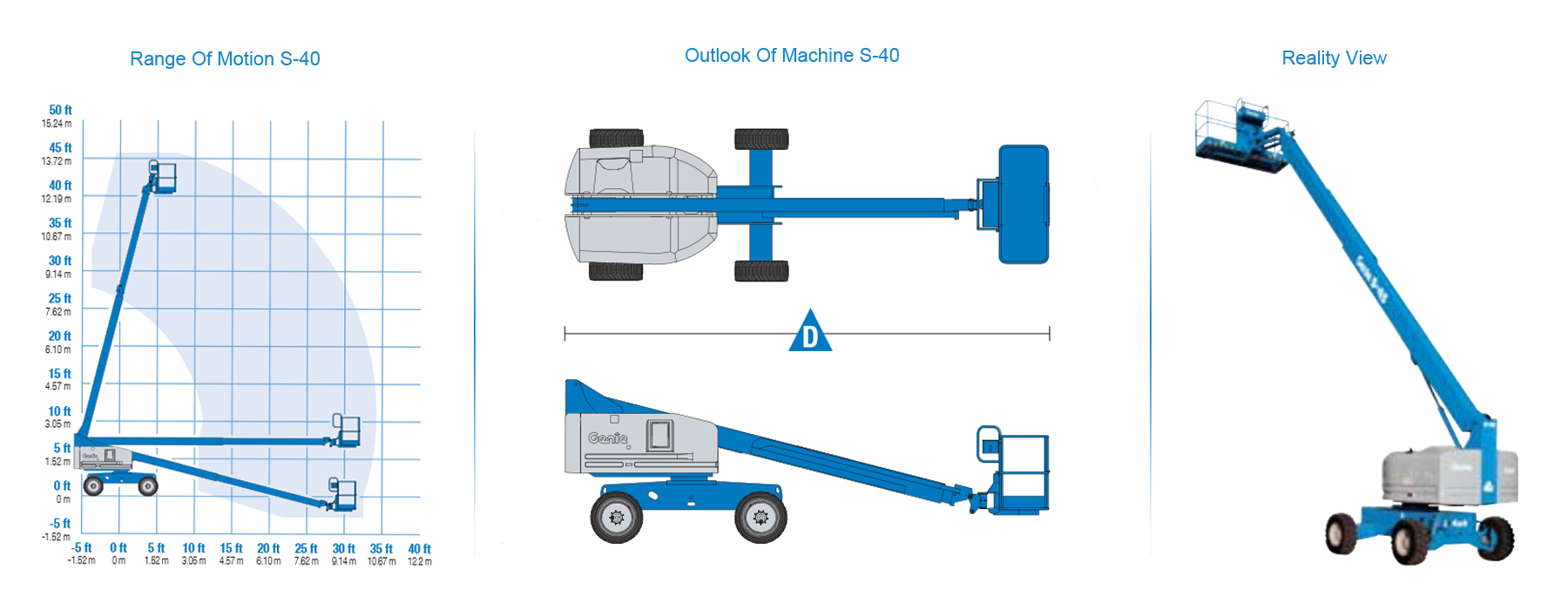

Genie Telescopic Boom Lift S™-40 & S™-45

Genie telescopic boom lift offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications.

Overview of Genie Telescopic Boom Lift S™-40 & S™-45

  • Genie boom lift have 360˚continuous rotation turntable for quick positioning.
  • Genie lifts have patented active oscillation system (4x4 models) automatically adjusts axle position for the terrain.
  • Genie lifts is positive traction drive maintains equal power to all drive wheels.
  • Rotating, self-leveling platform with hydraulic platform rotation.
  • Genie boom lifts fully proportional platform controls with ramp up/down feature.

Specifications of Genie Telescopic Boom Lift S™-40 & S™-45

Working Height* 46 ft (14.20 m)
Platform Height 40 ft (12.20 m)
Horizontal Reach 31 ft 8 in (9.65 m)
Lift Capacity 500 lbs (227 kg)

S™-45

Working Height* 51 ft (15.72 m)
Platform Height 45 ft (13.72 m)
Horizontal Reach 36 ft 8 in (11.18 m)
Lift Capacity 500 lbs (227 kg)

Downloads of Genie Telescopic Boom Lift S™-40 & S™-45

Other Products of Genie Boom Lifts

Product Working Height* Horizontal Reach Lift Capacity
S™-40 & S™-45 46 ft (14.20 m)
51 ft (15.72 m)
31 ft 8 in (9.65 m)
36 ft 8 in (11.18 m)
500 lbs (227 kg)
S™-40 Trax & S™-45 Trax 46 ft (14 m)
51 ft (15.5 m)
31 ft 8 in (9.7 m)
36 ft 8 in (11.2 m)
500 lb (227 kg)
S™-60X & S™-65 66 ft 2 in (20.34 m)
71 ft (21.80 m)
50 ft 10 in (15.48 m)
56 ft 2 in (17.10 m)
500/1000 lbs**
(227/454 kg)**
500 lbs (227 kg)
S™-60 Trax & S™-65 Trax 66 ft 2 in (20.34 m)
71 ft 2 in (21.86 m)
50 ft 10 in (15.48 m)
56 ft 2 in (17.10 m)
660/1100 lbs
(299/499 kg)**
500 lbs (227 kg)**
S™-80X & S™-85 86 ft (26.20 m)
91 ft (27.70 m)
71 ft 6 in (21.80 m)
76 ft 6 in (23.30 m)
500/1000 lbs**
(227/454 kg)**
500 lbs (227 kg)
S™-105 111 ft (34.00 m) 80 ft (24.38 m) 500 lbs (227 kg)
S™-125 131 ft 2 in (40.15 m) 80 ft (24.38 m) 500 lbs (227 kg)
SX-180 186 ft (56.69 m) 80 ft (24.38 m) 750 lb (340 kg)

Sendhamarai Engineering Offer Genie boom lifts for Sales - Services - Hire in South - India Region
