There are many types of scaffolding :-H-frame/facade modular system staging
- Tube and coupler fitting components
- H-frame scaffolding
- Prefabricated modular system scaffolding components
- Timber scaffolds
- Suspended staging
- Special scaffolding such as cantilever staging
- Wooden scaffolds
- Needle scaffolds
- Mason’s scaffolds

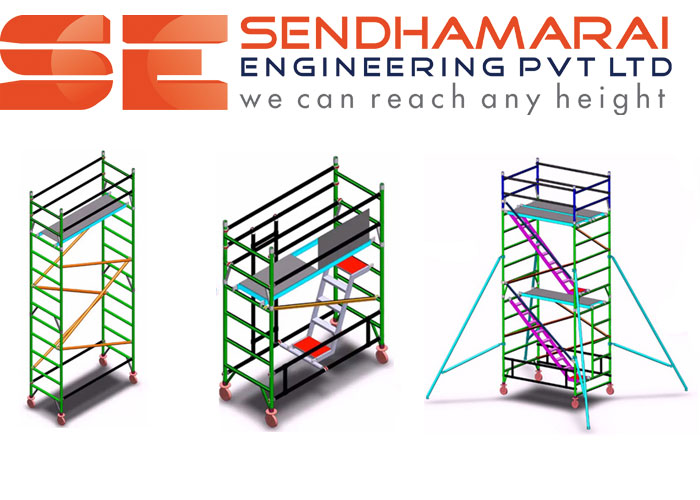

In that we (SENDHAMARAI ENGINEERING PVT LTD) manufacturing H-frame Aluminium Scaffolding.
SINGLE WIDTH SCAFFOLDING MODELS :-
Aluminium Movable Scaffolding Model 5150 :-It is very Compact aluminium scaffolding because it’s width is 0.8m and Length is 2m. It can be erected in small and crooked area also. Starting height is 1.8m (p.h)- 3.6m (w.h) and ending height is 4.2m(p.h) – 6.0m (w.h).
Aluminium Movable Scaffolding Model 5250 :-It is the most convenient and safety aluminium scaffolding with 0.8m width and 2m length. It has one safety ladder inside the scaffolding for safely claiming purpose. Only available height is 1.8m (p.h) – 3.6m (w.h).
Aluminium Movable Scaffolding Model 5050:-It is a new model aluminium scaffolding which use to have ladder in the side of the scaffolding. Available height is 4m (w.h) and 6m (w.h).
DOUBLE WIDTH SCAFFOLDING MODELS:
Aluminium Movable Scaffolding Model 5100 & 5200:- This Aluminium scaffolding model is more spacious to work and the workers will feel comfortable. Starting height is 2.2m (p.h)- 4.0m (w.h) and ending height is 16.2m(p.h) – 18.0m (w.h). The only difference between 5100 and 5200 is the width, Where 5100 has width of 1.4m and 5200 has a width of 2m. Other than that length 2m, starting height and ending height is same for both the model.
Aluminium Movable Scaffolding Model 5300 & 5400:-This Aluminium scaffolding model is the fast moving one in the present industry. Because of the safety and spacious work area for the workers.It has a safety Ladder inside the scaffolding, Width-1.4m and Length – 2m. Where the Starting height is 2.2m (p.h)- 4.0m (w.h) and ending height is 16.2m(p.h) – 18.0m (w.h). The only difference between 5300 and 5400 is the width, Where 5300 has width of 1.4m and 5400 has a width of 2m. Other than that length, starting height and ending height is same for both the model.
